IX73-Research
Inverted Microscope - Research
"Higher Level of Live Cell Research"
- 전자동 도립현미경
- Deck 시스템 도입으로 뛰어난 확장성
- 장시간의 이미징 촬영에도 최적의 안정성제공
- 최상의 광학성능 제공
- 터치패널과 소프트웨어를 통한 완벽제어가능
- 사용자의 편의를 위한 인체공학 디자인

IX73 Z축을 제외한 모든 부분 전동화 실현하여 Semi-auto부터 manual 현미경 구성이 가능하게 되었습니다.
2개의 "Deck"구조를 채용 여러 가지 이미지기술에 필요한 다양한 장치들을 장착 할 수 있게 되었습니다.
또한 오랜 시간 동안 세포관찰에 용이 할 수 있도록 높은 내구성과 안정성을 가지고 있어 장비의 활용성을
극대화 시킬 수 있습니다.

■ 새로운 특징
- 사용자의 요구에 맞게 확장 가능한 "Deck" 구조가 채용 되었습니다.
- 전동화 모듈을 장착 가능하도록 설계 사용자의 편의성 개선 되었습니다.
- Fly-eye를 적용 sCMOS와 같이 큰 영상획득장치에서 균일한 영상을 획득할 수 있습니다.
- 새롭게 개발된 고속 Shutter 및 Filter Wheel을 통해 정확한 이미지 획득이 가능하게 되었습니다.
- Real Time Controller를 사용하여 빠른 세포변화에 대응할 수 있도록 설계 되었습니다.

■ 개선된 광학성능

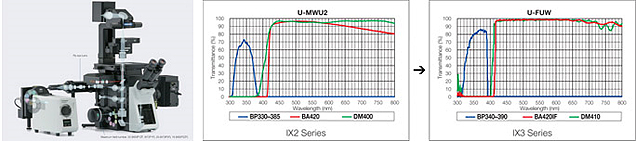

- 넓은 파장 영역에서 빛의 손실이 적고, 높은 S/N비의 영상 구현


- Fly-Eye 적용으로 밝고 균일한 조명을 쉽게 얻을 수 있음 - 고해상도의 PH영상과 형광을 렌즈변경없이 획득 가능한 새로운 렌즈 적용

- iPS/ES와 같은 floating cell에 특화된 새로운 렌즈 적용


■ 라이브 셀을 위한 최고의 선택

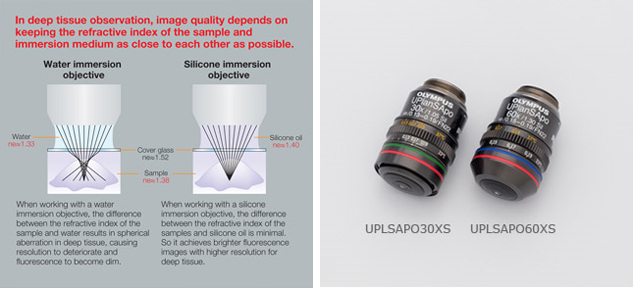

Live Cell을 위한 최적의 성능 – 실리콘 렌즈
시료의 굴정률(1.38)과 가까운 1.4의 굴절률을 사용하여 정확한 3차원영상관찰 및 장시간의 세포관찰에도 보다 선명한 영상
구현 가능



Confocal image of a Drosophila embryo at stage 11
expressing the tracheal marker trh-LacZ (Cy3, red) and
the cell membrane marker Dlg (Alexa488, green).
Enlarged view shows invaginating tracheal placode.

Courtesy of Dr. Takefumi Kondo, Dr. Shigeo Hayashi
Laboratory for Morphogenetic Signaling,
RIKEN Center for Developmental Biology



■ 사용자 편의성 개선

- LED 적용 (LIM) - 퀠러 조절이 편안한 디자인 - 현미경 오염방지 기술 적용
렌즈의 배율에 맞게 밝기를 자동
보정하는 기능 제공
앞쪽으로 변경된 콘덴서 조절 레버와
스톱퍼를 통한 콘덴서 오작동을 방지 함
현미경 하단에 오염 방지 막을 사용
이물질에 의해 S/N 저하를 방지

■ 높은 확장성과 이미징을 위한 향상된 정확성
Deck"system을 통한 높은 확장성 – 짧은 Z축 구조와 고열 강성 구조를 통해 정확성과 진동에 의한 영향을 최소화 시켜 장시간의 사용에 최적화 됨. 또한 IX3에는 2개의 Deck을 채용하여 다양한 연구에 맞게 다양한 유닛을 적용할 수 있음.

노즈피스와 가깝게 Z축구성
높은 강성과 노이즈 감소를 통해 정확한
영상 구현
4각형의 구조로 증가된 안정성 Deck 구조를 통해 다양한 모듈 장착과
유저에 의한 손쉬운 Modify가 가능 해짐



27ms의 고속셔터(U-FFW) 영상 구현 60ms의 고속 Excitation 필터 휠 (U-FFW) 60ms의 고속 Emission 필터 휠 – 카메라 장착 및 포커스 조절 가능 (U-FFWEM)

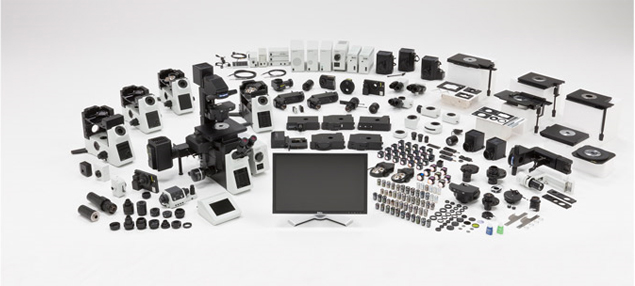

- 수많은 유저들의 요구를 충족할 수 있도록 다양한 전동 옵션 유닛들로 구성되어 있습니다.


Live Cell System (IX83-ZDC)
"Continuous Auto-Focus Function for Live Cell Imaging"
- 손쉬운 자동화 시스템
- 레이저를 통해 Auto-Focus 유지
- "연속적" 그리고 "원샷" 보정 모드
- 독립적인 전동 유닛으로 제어와 확장이 쉽다
- 강력한 소프트웨어를 통해 Live Cell Imaging에 최적화됨

TIRF
"Perfect TIRF Imaging"
- 레이저별 Evanescence field 보정 색수차 없이 정확한
Colocalization 이미지 분석 가능
- 전자동 변환으로 이미지 시간을 줄여 샘플의 손상을 최소화 함
- 60X, 100X, 150X의 고배율 고해상도의 TIRF영상 구현
- 특히 100X 렌즈는 세계 최고의 N.A. 1.65구현으로 누구도 따라올 수
없는 영상 제공

ON3
"From Microinjection to patch clamping"
- 조이스틱을 이용한 손쉬운 조작
- 다양한 Injector를 이용한 정밀한 작업 가능
- 정자의 꼬리를 잘라 내기 쉽도록 고배율 작업 가능
- Patch clamp를 위한 진동이 없는 디자인

FV1000
"From Imaging to Analysis"
- 고속, 고해상도의 Confocal 이미지 촬영
- Live cell을 위한 세포 손상 최소화
- SIM: 자극과 이미지 촬영을 동시에 가능
- 정밀한 Spectral 분석가능 - RICS, FCS, FRAP, FLIP & Photoactivation

FV1000MPE
"Advanced Deeper Imaging with High Resolution"
- 1mm 정도의 두꺼운 샘플 3D 구현 가능
- IR영역 이미지를 위한 최적의 설계
- Reaction point를 찾을 수 있는 Mapping Function
- Reaction point를 정확하게 자극을 줄 수 있는 Multi-point Function
- 올림푸스가 세계 최초로 개발한 Twin system을 통해
자극과 영상획득을 MPE에서 구현

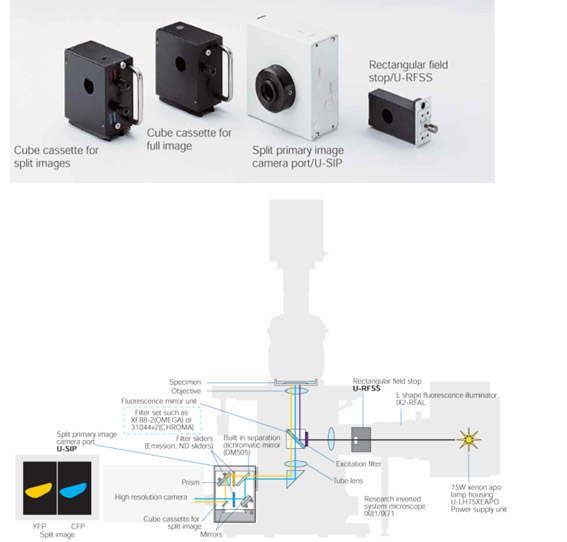

FRET System
"Bright, Simultaneous tow-wavelength imaign using the primary image"
- 동시에 2개의 형광영상을 디지털 카메라를 통해 획득가능
- 장착이 쉽게 설계되어 추가 장착에 따른 불편을 최소화
- 유사한 장치에 비해 10%높은 투과율을 가지고 있음
- 소프트웨어를 통한 정확한 FRET 분석가능





Microscope Frame

Optical System

UIS2 Optical System

Revolving nosepiece

* Motorized sextuple revolving nosepiece (DIC slider attachable), simple waterproof structure.

* Coded sextuple revolving nosepiece (DIC slider attachable), simple waterproof structure.

Focus

Stoke: 10 mm

Light Path selection

0:100/50:50/100:0 (Left side port: BI port)

Transmitted light illuminator

Pillar tilt mechanism (30° inclination angle, with vibration reducing mechanism), Condenser holder (with 88 stroke, refocusing mechanism), Field iris diaphragm adjustable, 4 filter holders

Light source:

* 12 V 100 W halogen bulb (pre-centered)

* High color reproductive LED light source

Observation tube

Widefield (FN 22)

*Widefield tilting binocular

* Widefield binocular

* Widefield trinocular

Stage

Scanning stage with ultrasonic

Stage stroke: X:76 mm x Y: 52 mm, maximum stage movement speed: 30 mm/s

Mechanical stage with right handle

Right handle stage

Flexible right handle stage

Gliding Stage

Plain Stage

Condenser

Motorized long working distance condenser

W.D. 27 mm, NA 0.55, motorized turret with 7 position slots for optical devices (3 positions for ø30 mm and 4 positions for ø38 mm), motorized aperture and polarizer.

Long working distance universal condenser

Long working distance relief contrast

Ultra long working distance

Fluorescence Illuminator

L-shape-fluorescence illuminator with flyeye lens

L-shaped design with exchangeable FS module.

L-shape-fluorescence illuminator

L-shaped design with exchangeable FS and AS modules.

Fluorescence illuminator

Straight design with field iris diaphragm.

Fluorescence Mirror Turret

Motorized fluorescence mirror turret

Motorized turret with 8 positions, built -in shutter, simple waterproof structurer.

Coded fluorescence mirror

Coded 8 positions turret, built-in shutter, simple waterproof structure

Fluorescence mirror turret

N/A

Fluorescence light source

*130W Hg light guide illumination * 100W Hg apo lamp housing and transformer *100W Hg lamp housing and transformer

* 75W Xe lamp housing and transformer.

Focus Compensator

Z-drift Compensator

N/A

Class 1 laser device

Filter wheel/shutter

Motorized fast filter wheel

High speed mode 60 ms, low vibration mode 100 ms (rotation time until next hold on the wheel)

Motorized fast filter wheel for emission

High speed mode 60 ms, low vibration mode 100 ms (rotation time until next hold on the wheel) C-mount adapter and bayonet mount adapter are enclosed.

Motorized fast shutter

High speed mode 26.2 ms, Low vibration mode 60 ms (rotation time on one way).

Motorized attenuator wheel

Time to shift another filter 300ms (rotation time until next hole on the wheel).

Operating environment

*Indoor use

*Ambient temperature: 5° to 40° C (41° to 104° F)

*Maximum relative humidity: 80% for temperatures up to 31°C (88°F), decreasing linearly through 70% at 34°C(93°F), 60% at 37°C (99°F), to 50% relative humidity at 40°C (104°F)

*Supply voltage fluctuations: Not to exceed
